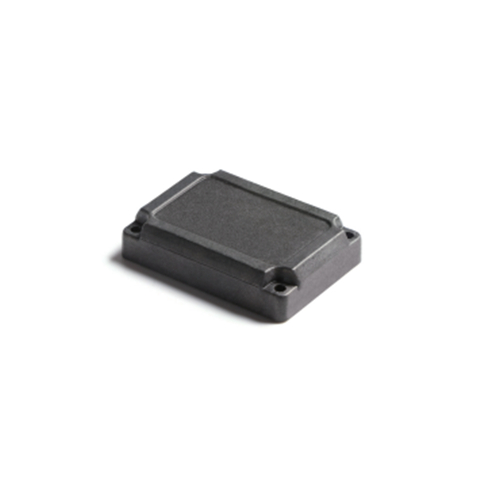

Trac10220 High Temperature Metal Mount UHF RFID Tag

Add to Wishlist
Availability:In Stock
SKU:Trac10220Categories: ,
  • Functional Specifications
RFID Protocol EPC Class1 Gen2, ISO18000-6C
Frequency US(902-928MHZ), EU(866-868MHZ)


Memory EPC 128bits , USER 0bits, TID 96bits
Write Cycles: Minimum 100,000 times
Functionality Read/write
Data Retention 50 Years
Applicable Surface Metal Surfaces
Read Range : (Fix Reader) 6.5m , US ( 902-928MHZ ) 6.0m , EU ( 865-868MHZ )
Read Range : (Handheld Reader 3.5m , US ( 902-928MHZ ) 3.5m , EU ( 865-868MHZ
Warranty 1 Year


  • Physical Specification


Size 41.0×29.0mm, Hole: D2.3mmx4
Thickness 9.0mm
Material PEEK
Colour Black
Mounting Methods Screw – Socket head cap screw(M2)
Weight 15.0g
  • Environmental Specification


IP Rating IP68, IP69K
Withstand PH PH0 to PH14,and all other liquid that PEEK can handle with
Storage Temperature -60°С to +260°С, +300°С100 hours
Operation Temperature -40°С to +200°С
Reliability testing terms and results a. Withstand 300°С for 100 hours continuously without damage.

b. Withstand 280°С for 1000 hours continuously without damage.

c. Withstand 260°С for 2000 hours continuously without damage.

d. Withstand -20°С for 8 hours then 260°С for 16 hours per day, 80 days continuously without damage.

e. Withstand from 150°С to -40°С, 7.5 cycles per day, 80 days continuously with total 600 cycles without damage.

f. Withstand 260°С for 100 hours continuously then soaking in 2 meters depth water for 48 hours, without seepage or damage.

Compression strength 150Mpa
certifications Reach Approved, RoHS Approved, CE Approved, ATEX Approved
